SS5 LED Pod Pro Yellow Combo Pair Diode Dynamics
- Engineered TIR (total internal reflection) optics
- Brilliant amber backlight color, for additional accent
- Built-in linking feature, build up to 50" bar
- Torture-tested, heavy-duty construction
- Ultra-high intensity: shines almost mile away
- Assembled in USA
Click to view the beam pattern differences

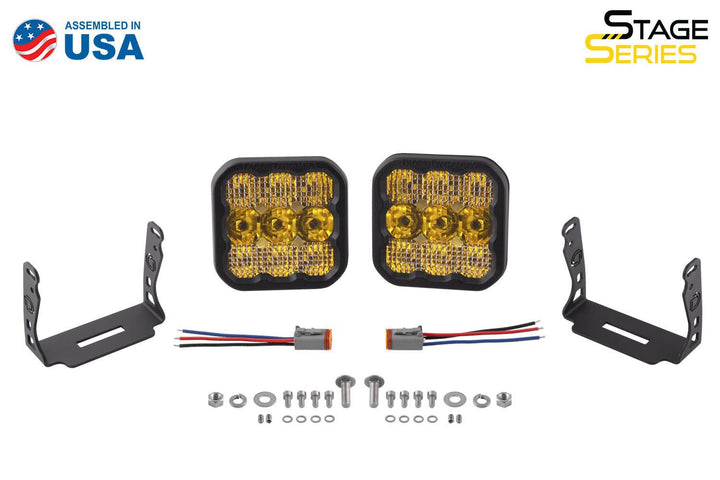

In the Box
- Two (2) Yellow Stage Series 5” LED COMBO Pods
Warranty
8 year warrantyIn addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage.
Specification | Product Details |
---|---|
Colour Temp (CCT) | 3000K |
Power (Watts) | Main Beam: 90, Backlight: 3.07 |
Operating Voltage | 9-16V |
Current (amps @ 12.8v) | Main Beam: 6, Backlight: 0.24 |
Polarity | Polarity Specific |
Operating Temperature | -40C to 85C (-40F to 185F) |
LED Emitter | Cree XP-L HI |
Connector(s) | Deutsch DT Input |
Driver Features | Constant Current |
Materials | Polycarbonate Lens, Aluminum Casting, Rubber Gasket |
Cooling | Passive, Pin-Fin heatsink |
Compliance Ratings | SAE J575 Durability Test |
Intrusion Ratings | IP69K Waterproof, High Pressure |
Product Dimensions (mm) | 129.5 x 129.5 x 68.58mm |
Unit Weight (kg) | 1.06 kg |
Product Weight (kg) | 2.13 kg |
Shipped Weight (kg) | 2.85763 kg |
Peak Beam Intensity (Candela) | 58,500 cd |
Illuminance (lux @ 10m) | 750 lux |
Measured Output (lumens) | 7,900 lm |
Raw Output (lumens) | 8,900 lm |
Output Color | 3000K Yellow |
Installation
Installation time: 30-60 minutesTools Needed: ["Basic Toolset"]
Installation guide: Download
Warranty
8 year warrantyIn addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage.
Introducing the SS5 LED Pod! Featuring the highest output intensity of any 5-inch LED pod on the market these auxiliary lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS5 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.

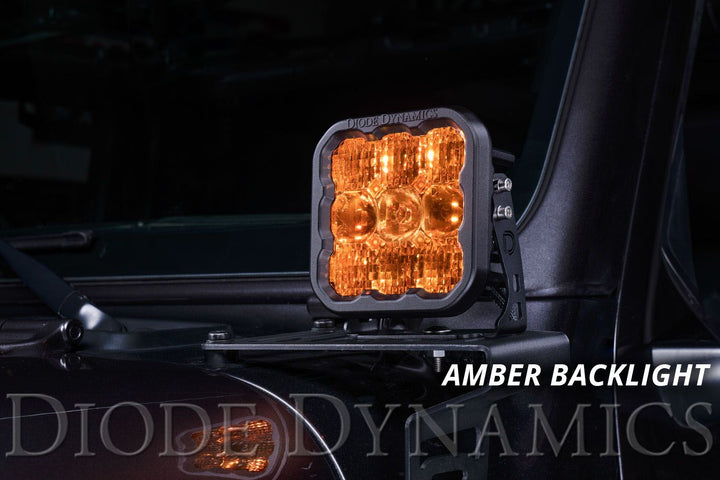

Amber Backlight. The Stage Series 5inch LED Pod features an amber backlight illumination perfect for an extra styling accent or for more visibility when you're not using the main beam. The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. Due to the yellow lens the Yellow SS5 is only available with an Amber backlight colour.
Simple connections. All SS5 LED pods feature an integrated and waterproof DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads. For installation you can wire yourself or select an optional Diode Dynamics wire harness.
