SS5 Grille CrossLink Lightbar Kit for 2017-2020 Ford Raptor Pro Yellow Combo Diode Dynamics
- Bolt-on fitment on 2017-2020 Ford Raptor.
- Mounts a six-pod CrossLink lightbar across the grille.
- Ultra-high intensity, custom-engineered TIR optics.
- Selectable backlight color, with eight colour options.
- Torture-tested, heavy-duty construction.
- Control through factory aux switch bank using the included harness.
- Utilises existing mounting points for easy installation - no cutting or drilling required.
Click to view the beam pattern differences
In the Box
- Two (2) Application-specific heavy-duty steel brackets
- Two (2) Low mount heavy-duty steel brackets
- Six (6) Stage Series 5” PRO YELLOW LED pods
- One (1) Heavy-duty single-output 4-pin wiring harness or One (1) Ultra heavy-duty single-output 4-pin wiring harness
- One (1) DT 6-Pod connecting harness
- One (1) CrossLink endmount kit
- Five (5) CrossLinks with hardware
- Installation Guide
Warranty
8 Year Limited WarrantyIn addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage.
| Specification | Product Details |
|---|---|
| Colour Temp (CCT) | 3000K |
| Power (Watts) | 3.07 |
| Operating Voltage | 9-16V |
| Current (amps @ 12.8v) | Main Beam 6 amps, Backlight 0.24 amps |
| Polarity | Polarity Specific |
| Operating Temperature | -40C to 85C (-40F to 185F) |
| LED Emitter | Cree XP-L HI |
| Connector(s) | Deutsch DT Input |
| Driver Features | Constant Current |
| Materials | Polycarbonate Lens, Aluminum Casting, Rubber Gasket |
| Cooling | Passive, Pin-Fin heatsink |
| Intrusion Ratings | IP69K Waterproof, High Pressure |
| Unit Weight (kg) | 4.39 |
| Product Weight (kg) | 8.07 |
| Shipped Weight (kg) | 10.90 |
| Peak Beam Intensity (Candela) | 75,000 cd |
| Illuminance (lux @ 10m) | 820 lux |
| Measured Output (lumens) | 7,900 lm |
| Raw Output (lumens) | 9,700 lm |
| Output Color | 3000K |
Installation
Installation time: 1-2 hoursTools Needed: ["5mm Allen Wrench"]
Installation guide: Download
Warranty
8 Year Limited WarrantyIn addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage.

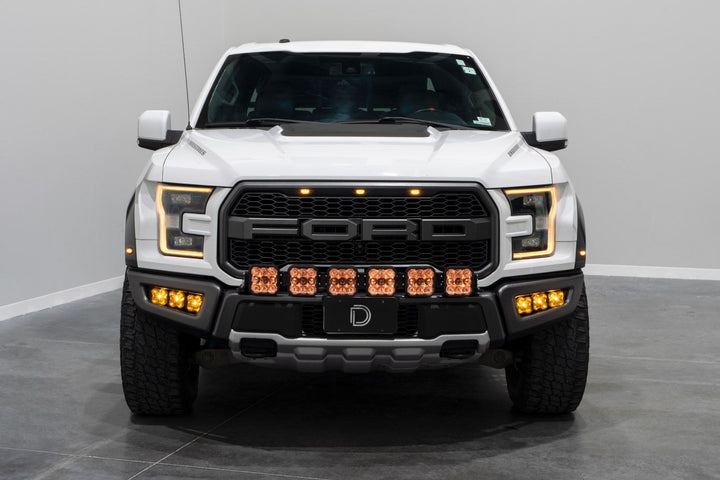

The Grille CrossLink Lightbar Kit compatible with Ford Raptor 2017-2020 from Diode Dynamics allows you to mount a six-pod CrossLink lightbar on the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the grille. No cutting or drilling required!
Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.
The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different colour options perfect for an extra styling accent or for more visibility when you're not using the main beam. Selecting your backlight colour is easy - simply alternate the power on and off! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. Note: Due to the yellow lens the Yellow kit is only available with an Amber backlight colour.
Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminium link provides extreme rigidity but is fully adjustable. This kit was designed for a curved configuration.
Both kits include an OEM aux switch adapter wire that connects to the harness and allows you to control your lights using the factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, you will use the toggle switch adapter wire included with the harness to mount a switch.
